Bismarck Series - Wall Sconce
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
BM0816S Dimensions: • W 10" • HT 17" • EXT 4" | FDX | 1,000lm LED (6W) | 1 | PC | WA AG | WMA | D1 |  |  |  | |
| FDY | 2,200lm LED (13W) | 1 | PC | WA AG | WMA | D1 | | | |||
| AXT | 1-60W A19 (60W) | 1 | PC | WA AG | WMA | | | ||||
BM1020S Dimensions: • W 12" • HT 21" • EXT 5" | FDZ | 2,200lm LED (13W) | 1 | PC | WA AG | WMA | BD BL | D1 D3 | | | |
| EAJ | 3,800lm LED (23W) | 1 | PC | WA AG | WMA | BD BL | D1 | | | ||
| AXV | 2-100W A21 (200W) | 1 | PC | WA AG | WMA | BD BL | | | |||
BM1326S Dimensions: • W 15" • HT 27" • EXT 6" | FEA | 6,300lm LED (39W) | 1 | PC | WA AG | WMC | BD BL | D1 | | | |
| EAN | 8,200lm LED (53W) | 1 | PC | WA AG | WMC | BD BL | D1 | | | ||
| AXZ | 3-100W A21 (300W) | 1 | PC | WA AG | WMC | BD BL | | | |||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |

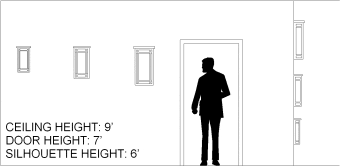

Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED lamping
- High power factor electronic LED driver
- Wired for single circuit operation, Body Lamping
- Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
- Standard LED CRI is 80 - contact us for alternate CRI availability
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Standard LED dimming is 0-10v
- Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
- Mounts to standard electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
EXT
Extension
Lamps
60W A19
Medium Base, 60W Max, Incandescent or LED
100W A21
Medium Base, 100W Max, Incandescent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
WMA
Wall Mount Sconce
WMC
Wall Mount Sconce Plate
Louvers
BD
Bottom Perf Door
BL
Bottom Lens
Dimming Types
D3
LED 0-10V wireless dimming
