Bismarck Series Wall Bracket Church Lighting Fixture in Oil Rubbed Bronze Finish
Matching Companion Lighting Fixtures for Other Building Areas:

Bismarck Series Pendant Church Light Fixture
Pendant
Bismarck Series Short Pendant Church Light Fixture
Short Pendant
Bismarck Series Intermediate Pendant Church Light Fixture
Intermediate Pendant
Bismarck Series Wall Sconce Church Light Fixture
Wall Sconce
Bismarck Series Ceiling Mount Church Light Fixture
Ceiling Mount

Bismarck Series - Wall Bracket


Click on a finish sample below to change fixture color:
Oil Rubbed Bronze
More Finishes Available
Download PDF
Model NumberLamping CodeBody LampingCircuitFinishDiffuserMountingLouverOptionsIESPDFBIM
BM0816B
Dimensions:
• W 10"
• HT 17"
• EXT 11"
AYB1-100W A21  (100W) 1PCAD
AG
WMSQBL

BM1020B
Dimensions:
• W 12"
• HT 21"
• EXT 13"
AYD1-100W A21  (100W) 1PCAD
AG
WMSQBL

BM1326B
Dimensions:
• W 15"
• HT 27"
• EXT 17"
AYH2-100W A21  (200W) 1PCAD
AG
WMSQBL
SAMPLE CATALOG NUMBER
Model Number - Lamping Code - Finish - Mounting - Diffuser - Options
Scale

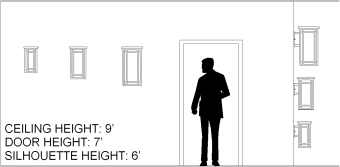

SQUARE wall bracket Scale



PRODUCT FEATURES
  • Fabricated and welded metal housing
  • Powder coated metallic finish
  • UV stable, white acrylic diffuser (Standard)
  • Optional specialty diffuser materials available
  • Energy efficient LED lamping
  • High power factor electronic LED driver
  • Wired for single circuit operation, Body Lamping
  • Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
  • Standard LED CRI is 80 - contact us for alternate CRI availability
  • Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
  • Standard LED dimming is 0-10v
  • Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
  • Mounts to standard electrical junction box (by others)
  • UL / cUL or ETL / cETL listed
  • Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
EXT
Extension
Lamps
100W A21
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
AD
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
WM
Wall Mount
Louvers
SQ
Square Cell
Options
BL
Bottom Lens
