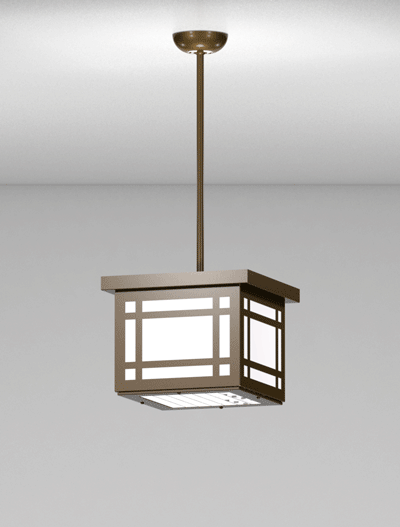

Bismarck Series Short Pendant Church Lighting Fixture in Oil Rubbed Bronze Finish
Matching Companion Lighting Fixtures for Other Building Areas:

Bismarck Series Pendant Church Light Fixture
Pendant
Bismarck Series Intermediate Pendant Church Light Fixture
Intermediate Pendant
Bismarck Series Wall Sconce Church Light Fixture
Wall Sconce
Bismarck Series Wall Bracket Church Light Fixture
Wall Bracket
Bismarck Series Ceiling Mount Church Light Fixture
Ceiling Mount

Bismarck Series - Short Pendant


Click on a finish sample below to change fixture color:
Oil Rubbed Bronze
More Finishes Available
Download PDF
Model NumberLamping CodeBody LampingCircuitFinishDiffuserMountingLouverOptionsIESPDFBIM
BM1008P
Dimensions:
• W 12"
• HT 9"
• OAH 48"
(OverAll Height)
GGV4,800lm LED  (14W) 1PCAD
AG
ST
SP
SQD1

AXL2-100W A21  (200W) 1PCAD
AG
ST
SP
SQ

BM1309P
Dimensions:
• W 15"
• HT 10"
• OAH 48"
(OverAll Height)
GGW4,800lm LED  (27W) 1PCAD
AG
ST
SP
SQD1

AXN3-100W A21  (300W) 1PCAD
AG
ST
SP
SQ

BM1410P
Dimensions:
• W 14"
• HT 10"
• OAH 48"
(OverAll Height)
GGX4,800lm LED  (27W) 1PCAD
AG
ST
SP
SQD1

CWX3-150W A21  (450W) 1PCAD
AG
ST
SP
SQ

BM2408P
Dimensions:
• W 26"
• HT 8"
• OAH 48"
(OverAll Height)
GKX9,700lm LED  (53W) 1PCAD
AG
ST
SP
SQD1
D2*

GKW15,800lm LED  (106W) 1PCAD
AG
ST
SP
SQD1
D2*
SAMPLE CATALOG NUMBER
Model Number - Lamping Code - Finish - Mounting - Diffuser - Options
Scale

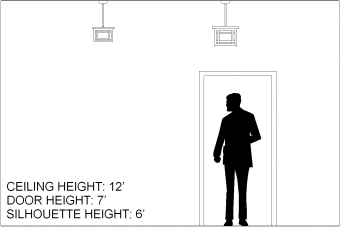

SQUARE short pendant Scale



PRODUCT FEATURES
  • Fabricated and welded metal housing
  • Powder coated metallic finish
  • UV stable, white acrylic diffuser (Standard)
  • Optional specialty diffuser materials available
  • Energy efficient LED lamping
  • High power factor electronic LED driver
  • Wired for dual circuit operation, Body Lamping and Down Lamping
  • Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
  • Standard LED CRI is 80 - contact us for alternate CRI availability
  • Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
  • Standard LED dimming is 0-10v
  • Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
  • Fixture is Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
  • Mounts to standard electrical junction box (by others), Box may require additional structural support (by others)
  • For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
  • UL / cUL or ETL / cETL listed
  • Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Lamps
100W A21
Medium Base, 100W Max, Incandesent or LED
150W A21
Medium Base, 150W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
AD
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
ST
Stem
SP
Steep Pitch Canopy for Stem
Louvers
SQ
Square Cell
Dimming Types
D1
LED 0-10V low voltage control dimming
D2*
LED Line voltage control dimming
*Consult factory for dimmer compatibility
