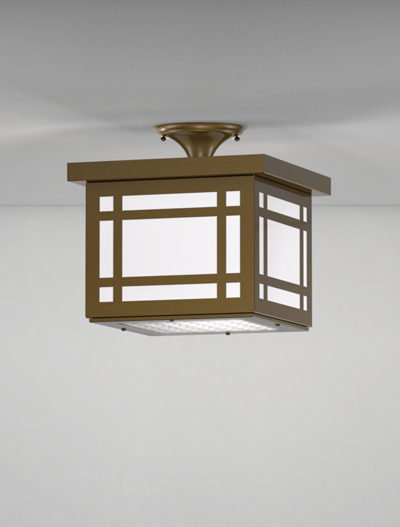

Bismarck Series - Ceiling Mount
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
BM1008C Dimensions: • W 12" • HT 10" | GJT | 4,800lm LED (28W) | 1 | PC | WA AG | CCA FMA | SQ | D1 |  |  |  |
| AXP | 2-100W A21 (200W) | 1 | PC | WA AG | CCA FMA | SQ | | | |||
BM1309C Dimensions: • W 15" • HT 11" | GJM | 4,800lm LED (28W) | 1 | PC | WA AG | CCA FMA | SQ | D1 | | | |
| AXR | 3-100W A21 (300W) | 1 | PC | WA AG | CCA FMA | SQ | | | |||
BM1410C Dimensions: • W 14" • HT 12" | GJN | 4,800lm LED (28W) | 1 | PC | WA AG | CCA FMA | SQ | D1 | | | |
| CWZ | 3-100W A21 (300W) | 1 | PC | WA AG | CCA FMA | SQ | | | |||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED lamping
- High power factor electronic LED driver
- Wired for single circuit operation, Body Lamping
- Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
- Standard LED CRI is 80 - contact us for alternate CRI availability
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Standard LED dimming is 0-10v
- Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
- Mounts to standard electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
Lamps
100W A21
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
CCA
Ceiling Canopy
FMA
Flush Mount
Louvers
SQ
Square Cell
Dimming Types
D1
LED 0-10V low voltage control dimming
