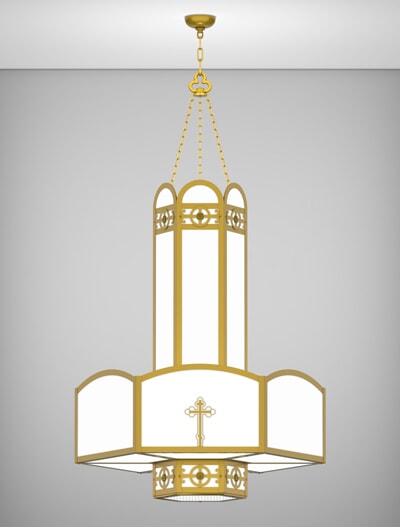

Antioch Series - 3-Tier Large Pendant
| Model Number | Lamping Code | Body Lamping | Gallery Lamping | Down Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
AN3038H Dimensions: • W 30" • HT 43" • OAH 72" (OverAll Height) | GLH | 4-60W A19 (240W) | 6-60W A19 (360W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | CHA CHD STA STC | SQ | SIL |  |  |  |
AN3642H Dimensions: • W 36" • HT 45" • OAH 96" (OverAll Height) | DWH | 15,300lm LED (83W) | 32,600lm LED (219W) | 7,100lm LED (51W) | 2 | PC | WA AG | CHA CHD STA STC | SQ | D1 SIL | | | |
| DJH | 6-100W A21 (600W) | 6-100W A21 (600W) | 1-100W R40/Par38 (100W) | 3 | PC | WA AG | CHA CHD STA STC | SQ | SIL | | | ||
AN4249H Dimensions: • W 42" • HT 54" • OAH 120" (OverAll Height) | DWK | 15,200lm LED (72W) | 32,600lm LED (210W) | 12,500lm LED (90W) | 2 | PC | WA AG | CHA CHD STA STC | SQ | D1 SIL | | | |
| FWL | 6-100W A21 (600W) | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 3 | PC | WA AG | CHA CHD STA STC | SQ | SIL | | | ||
AN5460H Dimensions: • W 54" • HT 60" • OAH 120" (OverAll Height) | DWL | 27,900lm LED (141W) | 37,600lm LED (247W) | 12,500lm LED (90W) | 2 | PC | WA AG | CHA CHD STA STC | SQ | D1 SIL | | | |
| ELK | 6-100W A21 (600W) | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 3 | PC | WA AG | CHA CHD STA STC | SQ | SIL | | | ||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for three circuit operation (Body Lamping/Gallery Lamping/Down Lamping)
- High power factor electronic ballast or LED driver
- Standard LED color temperature is 3000K with 80 CRI. Contact us for other color temperature or CRI options.
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Fixture may be Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
- Mounts to standard 4" octagonal electrical junction box (by others), Box requires additional structural support (by others)
- For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Lamps
60W A19
Medium Base, 60W Max, Incandescent or LED
100W R40/Par38
Medium Base, 100W Max, Incandescent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
CHA
Single Heavy Chain
CHD
Surface Mount Chain
STA
Single Stem
STC
Steep Pitch Canopy for Stem
Louvers
SQ
Square Cell
Dimming Types
Options
