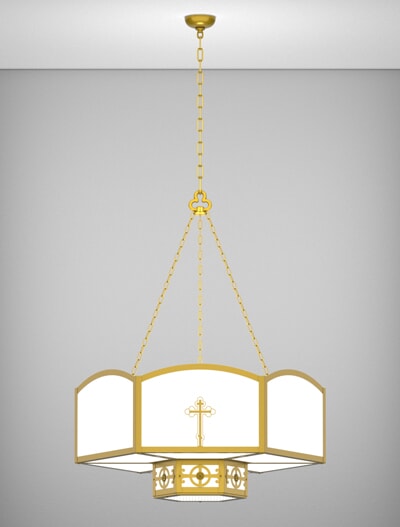

Antioch Series - 2-Tier Large Pendant
| Model Number | Lamping Code | Gallery Lamping | Down Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
AN3616W Dimensions: • W 36" • HT 18" • OAH 96" (OverAll Height) | DWC | 35,200lm LED (201W) | 7,100lm LED (47W) | 2 | PC | WA AG | CHC CHF | SQ | D1 D3 SIL |  |  |  |
| DJP | 6-100W A21 (600W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | CHC CHF | SQ | SIL | | | ||
AN4218W Dimensions: • W 42" • HT 20" • OAH 96" (OverAll Height) | DWF | 35,200lm LED (219W) | 12,500lm LED (93W) | 2 | PC | WA AG | CHC CHF | SQ | D1 SIL | | | |
| DJQ | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | CHC CHF | SQ | SIL | | | ||
AN5422W Dimensions: • W 54" • HT 24" • OAH 120" (OverAll Height) | EYG | 42,200lm LED (258W) | 12,500lm LED (93W) | 2 | PC | WA AG | CHC CHF | SQ | D1 SIL | | | |
| EYJ | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | CHC CHF | SQ | SIL | | | ||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for two circuit operation (Gallery Lamping/Down Lamping)
- High power factor electronic ballast or LED driver
- Standard LED color temperature is 3000K with 80 CRI. Contact us for other color temperature or CRI options.
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Fixture may be Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
- Mounts to standard 4" octagonal electrical junction box (by others), Box requires additional structural support (by others)
- For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Lamps
100W A21
Medium Base, 100W Max, Incandescent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
CHC
Triple Chain Spreader
CHF
Surface Mount Triple Chain Spreader
Louvers
SQ
Square Cell
Dimming Types
D3
LED 0-10V wireless dimming
Options
