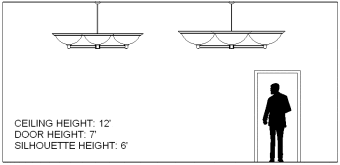

San Francisco Series - 3-Arm Cluster Pendant
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Diffuser | Mounting | Options | IES | BIM | |
SF5012U Dimensions: • W 78" • HT 14" • OAH 36" (OverAll Height) • Y 3 @ 30"x10" | EBU | 23,200lm LED (160W) | 1 | PC | WA PA | STA STC STE | D1 |  |  |  |
| EBV | 30,500lm LED (212W) | 1 | PC | WA PA | STA STC STE | D1 | | | ||
| BFV | 12-100W A21 (1200W) | 1 | PC | WA PA | STA STC STE | | | |||
SF6214U Dimensions: • W 96" • HT 16" • OAH 48" (OverAll Height) • Y 3 @ 36"x12" | EBZ | 27,700lm LED (192W) | 1 | PC | WA PA | STA STC STE | D1 | | | |
| DWW | 41,000lm LED (293W) | 1 | PC | WA PA | STA STC STE | D1 | | | ||
| BFZ | 18-100W A21 (1800W) | 1 | PC | WA PA | STA STC STE | | | |||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic bowl diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED lamping
- High power factor electronic LED driver
- Wired for dual circuit operation, Body Lamping and Down Lamping
- Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
- Standard LED CRI is 80 - contact us for alternate CRI availability
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Standard LED dimming is 0-10v
- Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
- Fixture is Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
- Mounts to standard electrical junction box (by others), Box requires additional structural support (by others)
- For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Y
Y-Dimension
Lamps
100W A21
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
PA
Premium Acrylic Diffuser
Mountings
STA
Single Stem
STC
Steep Pitch Canopy for Stem
STE
Multi-Stem
Dimming Types
D1
LED 0-10V low voltage control dimming
