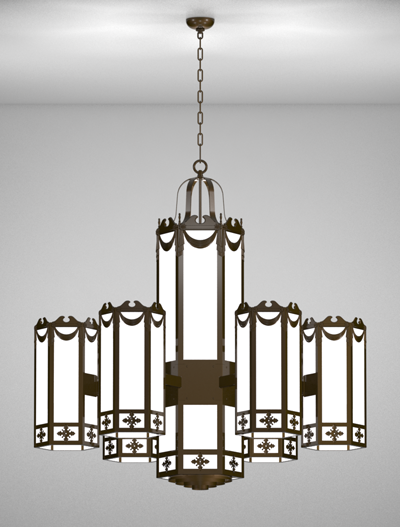

Richmond Series - 6-Arm Satellite Pendant
| Model Number | Lamping Code | Body Lamping | Satellite Lamping | Down Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
RM4836A Dimensions: • W 48" • HT 44" • OAH 96" (OverAll Height) • X 1 @ 14"x44" • Y 6 @ 10"x22" | EIB | 5-60W A19 (300W) | 12-60W A19 (720W) | 1-26W PAR38 LED (26W) | 3 | PC | WA AG | CHA STC STD | SQ |  |  |  | |
RM6045A Dimensions: • W 60" • HT 54" • OAH 120" (OverAll Height) • X 1 @ 16"x54" • Y 6 @ 12"x24" | EIC | 9-60W A19 (540W) | 12-60W A19 (720W) | 1-26W PAR38 LED (26W) | 3 | PC | WA AG | CHA STC STD | SQ | | | | |
RM7254A Dimensions: • W 72" • HT 64" • OAH 120" (OverAll Height) • X 1 @ 18"x64" • Y 6 @ 14"x26" | EID | 12-60W A19 (720W) | 12-60W A19 (720W) | 1-26W PAR38 LED (26W) | 3 | PC | WA AG | CHA STC STD | SQ | | | | |
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for three circuit operation (Body Lamping/Down Lamping/Satellite Lamping)
- High power factor electronic ballast or LED driver
- Standard LED color temperature is 3000K with 80 CRI. Contact us for other color temperature or CRI options.
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Fixture may be Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
- Mounts to standard 4" octagonal electrical junction box (by others), Box requires additional structural support (by others)
- For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
X
X-Dimension
Y
Y-Dimension
Lamps
60W A19
Medium Base, 60W Max, Incandescent or LED
26W PAR38 LED
Medium Base, 26W Max, LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
CHA
Single Heavy Chain
STC
Steep Pitch Canopy for Stem
STD
Heavy Surface Mount Stem
Louvers
SQ
Square Cell
