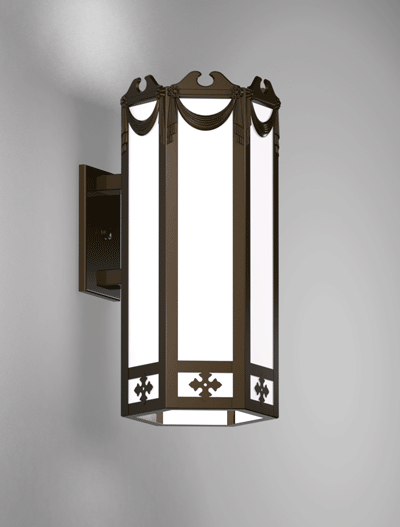

Richmond Series - Wall Bracket
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
RM0816B Dimensions: • W 8" • HT 16" • EXT 10" | DED | 2,100lm LED (15W) | 1 | PC | WA AG | WMD | SQ | CN D1 D2* E |  |  |  |
| ACK | 1-100W A21 (100W) | 1 | PC | WA AG | WMD | SQ | CN E | | | ||
RM1020B Dimensions: • W 10" • HT 20" • EXT 12" | DEE | 3,100lm LED (23W) | 1 | PC | WA AG | WMD | SQ | CN D1 D2* E | | | |
| ACM | 1-100W A21 (100W) | 1 | PC | WA AG | WMD | SQ | CN E | | | ||
RM1224B Dimensions: • W 12" • HT 24" • EXT 14" | FEJ | 4,400lm LED (27W) | 1 | PC | WA AG | WMD | SQ | CN D1 E | | | |
| GOV | 6,300lm LED (39W) | 1 | PC | WA AG | WMD | SQ | CN D1 E | | | ||
| FEI | 1-100W A21 (100W) | 1 | PC | WA AG | WMD | SQ | CN E | | | ||
RM1426B Dimensions: • W 14" • HT 26" • EXT 16" | DEG | 6,300lm LED (39W) | 1 | PC | WA AG | WMD | SQ | CN D1 D3 E | | | |
| ACR | 2-100W A21 (200W) | 1 | PC | WA AG | WMD | SQ | CN E | | | ||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED lamping
- High power factor electronic LED driver
- Wired for single circuit operation, Body Lamping
- Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
- Standard LED CRI is 80 - contact us for alternate CRI availability
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Standard LED dimming is 0-10v
- Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
- Mounts to standard electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
EXT
Extension
Lamps
100W A21
Medium Base, 100W Max, Incandescent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
WMD
Wall Mount Bracket
Louvers
SQ
Square Cell
Dimming Types
D2*
LED Line voltage control dimming
*Consult factory for dimmer compatibility
*Consult factory for dimmer compatibility
D3
LED 0-10V wireless dimming
Options
