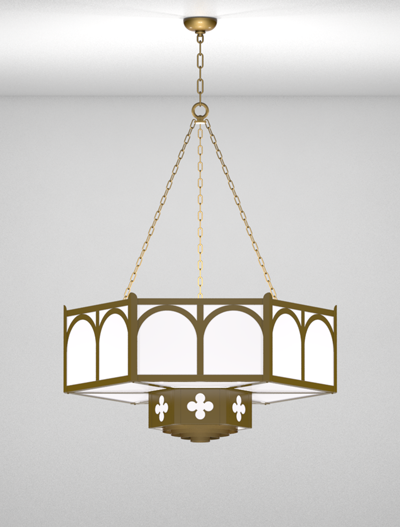

Roselle Series - 2-Tier Large Pendant
| Model Number | Lamping Code | Gallery Lamping | Down Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
RE2412W Dimensions: • W 24" • HT 12" • OAH 48" (OverAll Height) | FYS | 11,900lm LED (73W) | 1 | PC | WA AG | CHC | SQ | CUT D1 D2* D3 LOGO |  |  |  | |
| GLI | 6-60W A19 (360W) | 1-100W PAR38 (100W) | 2 | PC | WA AG | CHC | SQ | CUT LOGO | | | ||
RE3014W Dimensions: • W 30" • HT 14" • OAH 72" (OverAll Height) | FYT | 17,300lm LED (121W) | 1 | PC | WA AG | CHC | SQ | CUT D1 LOGO | | | | |
| GLJ | 6-60W A19 (360W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | CHC | SQ | CUT LOGO | | | ||
RE3616W Dimensions: • W 36" • HT 16" • OAH 96" (OverAll Height) | DVJ | 35,200lm LED (201W) | 7,100lm LED (47W) | 2 | PC | WA AG | CHC | SQ | CUT D1 D2* D3 LOGO | | | |
| FWH | 6-100W A21 (600W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | CHC | SQ | CUT LOGO | | | ||
RE4218W Dimensions: • W 42" • HT 18" • OAH 96" (OverAll Height) | DZT | 35,200lm LED (219W) | 12,500lm LED (93W) | 2 | PC | WA AG | CHC | SQ | CUT D1 LOGO | | | |
| FWI | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | CHC | SQ | CUT LOGO | | | ||
RE5422W Dimensions: • W 54" • HT 22" • OAH 120" (OverAll Height) | DVL | 42,200lm LED (247W) | 12,500lm LED (90W) | 2 | PC | WA AG | CHC | SQ | CUT D1 LOGO | | | |
| FWJ | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | CHC | SQ | CUT LOGO | | | ||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED lamping
- High power factor electronic LED driver
- Wired for dual circuit operation, Gallery Lamping and Down Lamping
- Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
- Standard LED CRI is 80 - contact us for alternate CRI availability
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Standard LED dimming is 0-10v
- Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
- Fixture is Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
- Mounts to standard electrical junction box (by others), Box requires additional structural support (by others)
- For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Lamps
60W A19
Medium Base, 60W Max, Incandesent or LED
100W PAR38
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
CHC
Triple Chain Spreader
Louvers
SQ
Square Cell
Dimming Types
D2*
LED Line voltage control dimming
*Consult factory for dimmer compatibility
*Consult factory for dimmer compatibility
D3
LED 0-10V wireless dimming
Options
