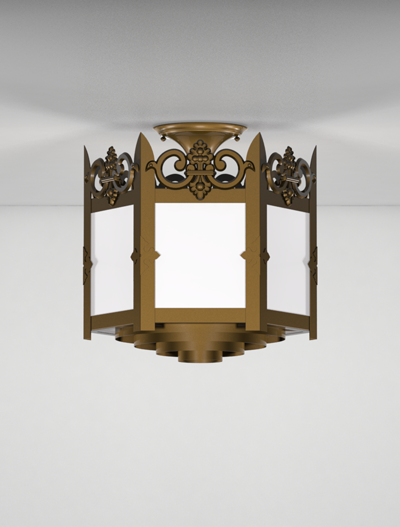

Lancaster Series Ceiling Mount Church Lighting Fixture in Medium Bronze Finish

Matching Companion Lighting Fixtures for Other Building Areas:

Lancaster Series Pendant Church Light Fixture

Pendant

Lancaster Series Short Pendant Church Light Fixture

Short Pendant

Lancaster Series Intermediate Pendant Church Light Fixture

Intermediate Pendant

Lancaster Series 2-Tier Large Pendant Church Light Fixture

2-Tier
Large Pendant

Lancaster Series 3-Tier Large Pendant Church Light Fixture

3-Tier
Large Pendant

Lancaster Series 6-Arm Satellite Pendant Church Light Fixture

6-Arm
Satellite Pendant

Lancaster Series 3-Arm Cluster Pendant Church Light Fixture

3-Arm
Cluster Pendant

Lancaster Series Wall Sconce Church Light Fixture

Wall Sconce

Lancaster Series Wall Bracket Church Light Fixture

Wall Bracket

Lancaster Series - Ceiling Mount

Click on a finish sample below to change fixture color:

Medium Bronze

More Finishes Available

Model Number	Lamping Code	Body Lamping	Circuit	Finish	Diffuser	Mounting	Louver	Options	IES	PDF	BIM
LC1207C Dimensions: • W 12" • HT 11"	ABT	2-100W A21 (200W)	1	PC	WA AG	CCA	SQ

LC1408C Dimensions: • W 14" • HT 12"	GHB	5,400lm LED (32W)	1	PC	WA AG	CCA	SQ	D1 D2* D3

	ABV	3-100W A21 (300W)	1	PC	WA AG	CCA	SQ

LC1609C Dimensions: • W 16" • HT 14"	GJK	5,400lm LED (32W)	1	PC	WA AG	CCA	SQ	D1 D2* D3

	ABX	3-100W A21 (300W)	1	PC	WA AG	CCA	SQ

LC1811C Dimensions: • W 18" • HT 16"	GHD	5,400lm LED (32W)	1	PC	WA AG	CCA	SQ	D1 D2*

	ABZ	3-100W A21 (300W)	1	PC	WA AG	CCA	SQ

LC2208C Dimensions: • W 22" • HT 14"	FXI	9,700lm LED (59W)	1	PC	WA AG	CCA	SQ	D1 D3

	GML	13,600lm LED (105W)	1	PC	WA AG	CCA	SQ	D1 D2* D3

	GEM	6-60W A19 (360W)	1	PC	WA AG	CCA	SQ

SAMPLE CATALOG NUMBER

Model Number - Lamping Code - Finish - Mounting - Diffuser - Options

Scale

HEX ceiling mount Scale

PRODUCT FEATURES

Fabricated and welded metal housing
Powder coated metallic finish
UV stable, white acrylic diffuser (Standard)
Optional specialty diffuser materials available
Energy efficient LED lamping
High power factor electronic LED driver
Wired for single circuit operation, Body Lamping
Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
Standard LED CRI is 80 - contact us for alternate CRI availability
Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
Standard LED dimming is 0-10v
Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
Mounts to standard electrical junction box (by others)
UL / cUL or ETL / cETL listed
Contact Us for more lamping options.

Abbreviation Key

Dimensions

W

Width

HT

Height

Lamps

100W A21

Medium Base, 100W Max, Incandescent or LED

60W A19

Medium Base, 60W Max, Incandescent or LED

Finish Types

PC

Powder Coat

Diffuser Types

WA

Standard Acrylic Diffuser

AG

Premium Glass Diffuser

Mountings

CCA

Ceiling Canopy

Louvers

SQ

Square Cell

Dimming Types

LED 0-10V low voltage control dimming

D2*

LED Line voltage control dimming
*Consult factory for dimmer compatibility

D3

LED 0-10V wireless dimming
