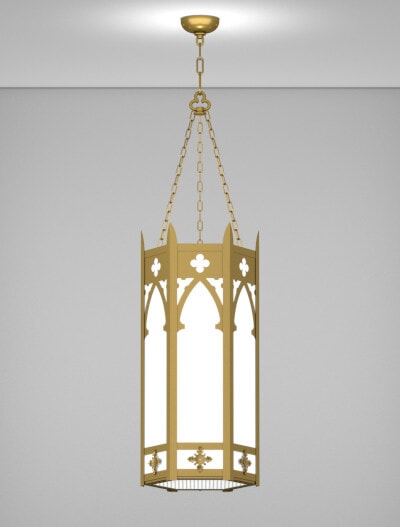

Cambridge Series - Pendant
Click on a finish sample below to change fixture color:
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Hanging - Diffuser - Options |
| Model | Lamping Options | |||||||||||||||||||
| Model Number | Lamping Code | Body Lamping | Down Lamping | Voltage | Circuit | Finish | Louver | Hanging | Diffuser | Options | Dimensions | |||||||||
| CA1222L | AAF ELB | 2-F39BX (77W) 3-MAX 60 IN/SBCF/LED (180W) | 1-F70QBX (81W) 1-MAX 60 IN/SBCF/LED (60W) | 120/277 120 | 2 2 | PC | CR SQ | CH SS | AD AG GA | DIM-010 DM |
| |||||||||
| CA1426L | DTG DVG DFB DFJ AAH DHI | 14,700lm LED (96W) 14,700lm LED (96W) 14,700lm LED (96W) 23,300lm LED (159W) 4-F39BX (156W) 6-MAX 100 IN/SBCF/LED (600W) | 12,000lm LED (100W) 5,000lm LED (38W) 7,000lm LED (53W) 12,000lm LED (100W) 1-F70QBX (81W) 1-300R40 (300W) | 120/277 120/277 120/277 120/277 120/277 120 | 2 2 2 2 2 2 | PC | CR SQ | CH SS | AD AG GA | DIM-010 DM |
| |||||||||
| CA1631L | DFA DCR DLX AAK AAM AAO DHJ | 14,700lm LED (96W) 31,000lm LED (213W) 23,300lm LED (159W) 4-F40BX (154W) 6-F40BX (231W) 8-F40BX (308W) 6-MAX 100 IN/SBCF/LED (600W) | 12,000lm LED (100W) 12,000lm LED (100W) 12,000lm LED (100W) 2-F70QBX (161W) 2-F70QBX (161W) 2-F70QBX (161W) 1-300R40 (300W) | 120/277 120/277 120/277 120/277 120/277 120/277 120 | 2 2 2 2 2 2 2 | PC | CR SQ | CH SS | AD AG GA | DIM-010 DM |
| |||||||||
| CA1836L | DDL DNS AAR AAT AAV DHK | 23,500lm LED (144W) 37,400lm LED (238W) 4-F40BX (154W) 6-F40BX (231W) 8-F40BX (308W) 9-MAX 100 IN/SBCF/LED (900W) | 12,000lm LED (100W) 12,000lm LED (100W) 2-F70QBX (161W) 2-F70QBX (161W) 2-F70QBX (161W) 1-300R40 (300W) | 120/277 120/277 120/277 120/277 120/277 120 | 2 2 2 2 2 2 | PC | CR SQ | CH SS | AD AG GA | DIM-010 DM |
| |||||||||
| CA2242L | DNF ABB ABE ABK DHL | 32,700lm LED (216W) 6-F40BX (231W) 8-F40BX (327W) 12-F40BX (461W) 12-MAX 100 IN/SBCF/LED (1200W) | 12,000lm LED (100W) 3-F70QBX (242W) 3-F70QBX (242W) 3-F70QBX (242W) 1-300R40 (300W) | 120/277 120/277 120/277 120/277 120 | 2 2 2 2 3 | PC | CR SQ | CH SS | AD AG GA | DIM-010 DM |
| |||||||||
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for dual circuit operation (Body Lamping/Down Lamping)
- High power factor electronic ballast or LED driver
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Fixture is Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
- Mounts to standard electrical junction box (by others), Box may require additional structural support (by others)
- For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
Overall Height
Lamp Descriptions
300R40
300W R40, medium base
MAX 60 IN/SBCF/LED
Medium Base, 60W Max, Incandesent or LED
MAX 100 IN/SBCF/LED
Medium Base, 100W Max, Incandesent or LED
F39BX
39W high lumen biax, 4-PIN 2G11 base
F40BX
40W high lumen biax, 4-PIN 2G11 base
F70QBX
70W quad biax, 4-PIN GX24q-6 base
LED
3000 Kelvin Warm White LED
Finishes
PC
Powder Coat
Hanging Style
SS
SINGLE STEM
CH
CHAIN
Diffusers
AD
Acrylic (White Acrylic Standard)
AG
Art Glass
GA
Glass Alterative
Options
DM
Dimming
DIM-010
0-10V four wire control dimming
Louver
CR
CONCENTRIC RING (Not available on LED lamping)
SQ
SQUARE CELL (Must be used on all LED lamping)
