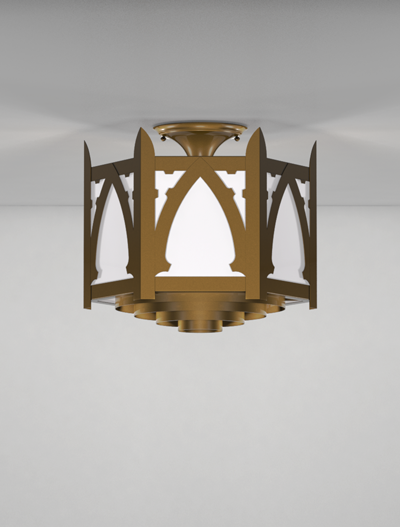

Cambridge Series - Ceiling Mount
| Model Number | Lamping Code | Body Lamping | Voltage | Circuit | Finish | Louver | Hanging | Diffuser | Options |
|
CA1207C
Dimensions:
• W 12"
• HT 10"
|
ABU | 2-F32TBX (77W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | DM |
| ABT | 2-100W-A21 (200W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | DM | |
|
CA1408C
Dimensions:
• W 14"
• HT 11"
|
DTR | 2,600lm LED (24W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | DIM-010 |
| ABW | 2-F42TBX (99W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | DM | |
| ABV | 3-100W-A21 (300W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | DM | |
|
CA1609C
Dimensions:
• W 16"
• HT 12"
|
DTS | 3,800lm LED (34W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | DIM-010 |
| ABY | 3-F42TBX (148W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | DM | |
| ABX | 3-100W-A21 (300W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | DM | |
|
CA1811C
Dimensions:
• W 18"
• HT 14"
|
DOQ | 3,800lm LED (34W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | DIM-010 |
| ACA | 4-F42TBX (197W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | DM | |
| ABZ | 3-100W-A21 (300W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | DM | |
|
CA2206C
Dimensions:
• W 22"
• HT 7"
|
BPF | 4-F42TBX (197W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | DM |
| DUL | 6-60W-A19 (360W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | DM | |
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Hanging - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for single circuit operation (Body Lamping)
- High power factor electronic ballast or LED driver
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatability.
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Mounts to standard 4" octagonal electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
Lamp Descriptions
60W-A19
Medium Base, 60W Max, Incandesent or LED
100W-A21
Medium Base, 100W Max, Incandesent or LED
F32TBX
32W triple biax, 4-PIN GX24q-3 base
F42TBX
42W triple biax, 4-PIN GX24q-4 base
LED
3000 Kelvin Warm White LED
Finishes
PC
Powder Coat
Hanging Style
CC
Ceiling Canopy
Diffusers
AD
Acrylic (White Acrylic Standard)
AG
Art Glass
Options
DM
Dimming
DIM-010
0-10V low voltage control dimming
Louver
CR
CONCENTRIC RING (Not available on LED lamping)
SQ
SQUARE CELL (Must be used on all LED lamping)
