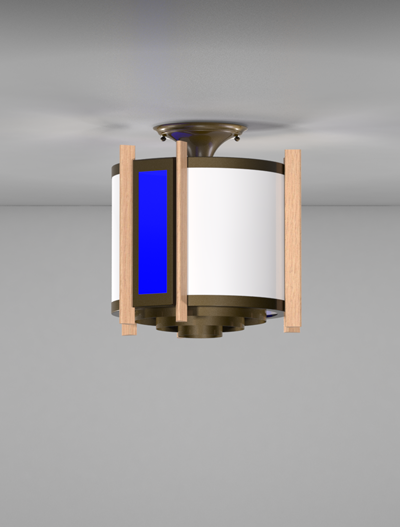

Winchester Series - Ceiling Mount
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Finish Accent | Diffuser | Diffuser Accent | Mounting | Louver | Options | IES | BIM | |
WR1007C Dimensions: • W 12" • HT 10" | AHO | 2-100W A21 (200W) | 1 | PC | WT CT | WA | DAC CDA | CCA | SQ | LOGO SIL |  |  |  |
WR1208C Dimensions: • W 14" • HT 12" | GJJ | 5,400lm LED (32W) | 1 | PC | WT CT | WA | DAC CDA | CCA | SQ | D1 D2* D3 LOGO SIL | | | |
| AHQ | 3-100W A21 (300W) | 1 | PC | WT CT | WA | DAC CDA | CCA | SQ | LOGO SIL | | | ||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Stained Solid Red Oak Wood Trim
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Energy efficient LED lamping
- Wired for single circuit operation (Body Lamping)
- High power factor electronic LED driver
- Standard LED color temperature is 3000K with 80 CRI. Contact us for other color temperature or CRI options.
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Optional dimming driver 120V (LED lamping)
- Mounts to standard 4" octagonal electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
Lamps
100W A21
Medium Base, 100W Max, Incandescent or LED
Finish Types
PC
Powder Coat
Finish Accent Types
WT
Wood Trim
CT
Custom Trim
Diffuser Types
WA
Standard Acrylic Diffuser
Diffuser Accent Types
DAC
Diffuser Accent Color
CDA
Custom Diffuser Accent
Mountings
CCA
Ceiling Canopy
Louvers
SQ
Square Cell
Dimming Types
D2*
LED Line voltage control dimming
*Consult factory for dimmer compatibility
*Consult factory for dimmer compatibility
D3
LED 0-10V wireless dimming
Options
