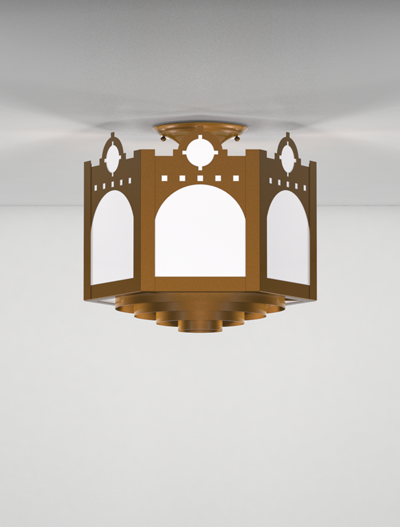

Taos Series - Ceiling Mount
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
TA1207C Dimensions: • W 12" • HT 9" | AMY | 2-100W A21 (200W) | 1 | PC | WA AG | CCA | SQ |  |  |  | |
TA1408C Dimensions: • W 14" • HT 11" | ANA | 3-100W A21 (300W) | 1 | PC | WA AG | CCA | SQ | | | | |
TA1609C Dimensions: • W 16" • HT 12" | GFC | 5,400lm LED (32W) | 1 | PC | WA AG | CCA | SQ | D1 D2* | | | |
| ANC | 3-100W A21 (300W) | 1 | PC | WA AG | CCA | SQ | | | |||
TA1811C Dimensions: • W 18" • HT 14" | GFD | 5,400lm LED (32W) | 1 | PC | WA AG | CCA | SQ | D1 D2* | | | |
| ANE | 3-100W A21 (300W) | 1 | PC | WA AG | CCA | SQ | | | |||
TA2208C Dimensions: • W 22" • HT 11" | FYA | 9,700lm LED (64W) | 1 | PC | WA AG | CCA | SQ | D1 | | | |
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED lamping
- High power factor electronic LED driver
- Wired for single circuit operation, Body Lamping
- Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
- Standard LED CRI is 80 - contact us for alternate CRI availability
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Standard LED dimming is 0-10v
- Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
- Mounts to standard electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
Lamps
100W A21
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
CCA
Ceiling Canopy
Louvers
SQ
Square Cell
Dimming Types
D1
LED 0-10V low voltage control dimming
D2*
LED Line voltage control dimming
*Consult factory for dimmer compatibility
*Consult factory for dimmer compatibility
