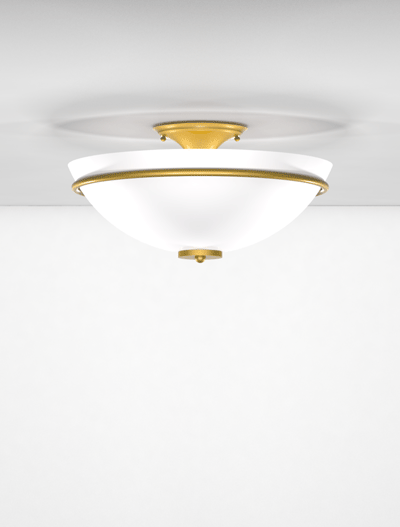

Sacramento Series - Ceiling Mount
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Diffuser | Mounting | Options | IES | |
SC1806C Dimensions: • W 18 • HT 9 | EDX | 2,600lm LED (22W) | 1 | PC | AD PA | CC FM | D1 FD |  |  |
| BCR | 2-60W A19 (120W) | 1 | PC | AD PA | CC FM | FD | | | |
SC2408C Dimensions: • W 24 • HT 11 | EDY | 2,600lm LED (22W) | 1 | PC | AD PA | CC FM | D1 FD | | |
| EOO | 7,700lm LED (53W) | 1 | PC | AD PA | CC FM | D1 FD | | | |
| BCT | 3-60W A19 (180W) | 1 | PC | AD PA | CC FM | FD | | | |
SC3010C Dimensions: • W 30 • HT 12 | EOP | 7,700lm LED (53W) | 1 | PC | AD PA | CC FM | D1 FD | | |
| EOQ | 13,600lm LED (88W) | 1 | PC | AD PA | CC FM | D1 FD | | | |
| BHR | 3-100W A21 (300W) | 1 | PC | AD PA | CC FM | FD | | | |
SC3612C Dimensions: • W 36 • HT 13 | EOR | 16,500lm LED (93W) | 1 | PC | AD PA | CC FM | D1 FD | | |
| BHT | 3-100W A21 (300W) | 1 | PC | AD PA | CC FM | FD | | | |
SC4214C Dimensions: • W 42 • HT 15 | EOT | 23,400lm LED (146W) | 1 | PC | AD PA | CC FM | D1 FD | | |
| FJU | 6-60W A19 (360W) | 1 | PC | AD PA | CC FM | FD | | | |
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for single circuit operation (Body Lamping)
- High power factor electronic ballast or LED driver
- Standard LED color temperature is 3000K with 80 CRI. Contact us for other color temperature or CRI options.
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatability.
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Mounts to standard 4" octagonal electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
Lamps
60W A19
Medium Base, 60W Max, Incandesent or LED
100W A21
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
AD
Standard Acrylic Diffuser
PA
Premium Acrylic Diffuser
Mountings
CC
Ceiling Canopy
FM
Flush Mount
Dimming
D1
LED 0-10v dimming options include integral 120-277v dimming drivers
Options
