Matching Companion Lighting Fixtures for Other Building Areas:
Pendant
2-Arm
Cluster Pendant
4-Arm
Cluster Pendant
Wall Sconce
Wall Bracket

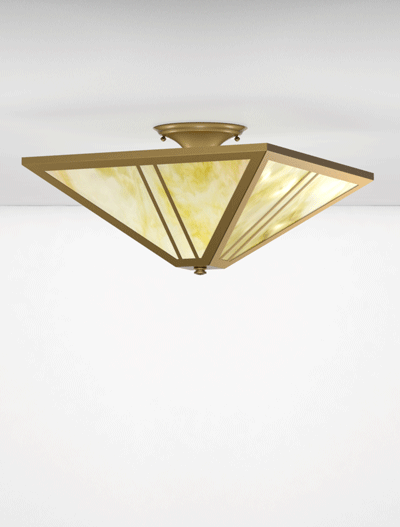

Oak Park Series - Ceiling Mount
| Model Number | Lamping Code | Body Lamping | Voltage | Circuit | Finish | Louver | Hanging | Diffuser | Options |
|
OP1807C
Dimensions:
• W 18"
• HT 9"
• OAH N/A
(OverAll Height)
|
BRM | 2-60W-A19 (120W) | 120 | 1 | PC | SQ | CC | AD/AG | DM |
|
OP2410C
Dimensions:
• W 24"
• HT 12"
• OAH N/A
(OverAll Height)
|
BRO | 3-60W-A19 (180W) | 120 | 1 | PC | SQ | CC | AD/AG | DM |
|
OP3012C
Dimensions:
• W 30"
• HT 14"
• OAH N/A
(OverAll Height)
|
BRR | 4-100W-A21 (400W) | 120 | 1 | PC | SQ | CC | AD/AG | DM |
|
OP3614C
Dimensions:
• W 36"
• HT 16"
• OAH N/A
(OverAll Height)
|
BRU | 4-100W-A21 (400W) | 120 | 1 | PC | SQ | CC | AD/AG | DM |
|
OP4216C
Dimensions:
• W 42"
• HT 18"
• OAH N/A
(OverAll Height)
|
BRX | 8-100W-A21 (800W) | 120 | 1 | PC | SQ | CC | AD/AG | DM |
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Hanging - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for single circuit operation (Body Lamping)
- High power factor electronic ballast or LED driver
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Mounts to standard 4" octagonal electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Lamp Descriptions
60W-A19
Medium Base, 60W Max, Incandesent or LED
100W-A21
Medium Base, 100W Max, Incandesent or LED
Finishes
PC
Powder Coat
Hanging Style
CC
Ceiling Canopy
Diffusers
AD
Acrylic (White Acrylic Standard)
AG
Art Glass
Options
DM
Dimming
Louver
SQ
SQUARE CELL (Must be used on all LED lamping)
