Matching Companion Lighting Fixtures for Other Building Areas:
Pendant
Intermediate Pendant

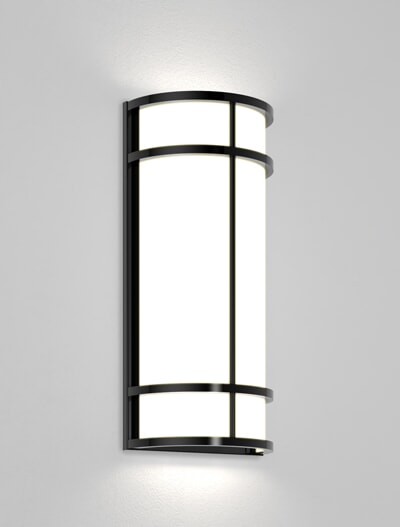

Long Beach Series - Wall Sconce
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Diffuser | Mounting | Options | IES | BIM | |
LB0816S Dimensions: • W 8" • HT 16" • EXT 4" | DYW | 1,000lm LED (8W) | 1 | PC | WA | WMA | D1 D2* |  |  |  |
| DYK | 1,800lm LED (13W) | 1 | PC | WA | WMA | D1 D2* D3 | | | ||
| AHS | 1-60W A19 (60W) | 1 | PC | WA | WMA | | | |||
LB0920S Dimensions: • W 9" • HT 20" • EXT 4" | GPD | 1,900lm LED (5W) | 1 | PC | WA | WMA | D1 | | | |
| GOF | 2,100lm LED (15W) | 1 | PC | WA | WMA | D1 | | | ||
| GOE | 3,100lm LED (23W) | 1 | PC | WA | WMA | D1 D2* D3 | | | ||
| GPV | 1-60W A19 (60W) | 1 | PC | WA | WMA | | | |||
LB1124S Dimensions: • W 11" • HT 24" • EXT 6" | GPS | 6,300lm LED (39W) | 1 | PC | WA | WMA | D1 D3 | | | |
| GPT | 7,100lm LED (45W) | 1 | PC | WA | WMA | D1 | | | ||
| GPU | 3-100W A21 (300W) | 1 | PC | WA | WMA | | | |||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for single circuit operation (Body Lamping)
- High power factor electronic ballast or LED driver
- Standard LED color temperature is 3000K with 80 CRI. Contact us for other color temperature or CRI options.
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Mounts to standard electrical junction box (by others)
- LED Battery Back-Up Available
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
EXT
Extension
Lamps
60W A19
Medium Base, 60W Max, Incandescent or LED
100W A21
Medium Base, 100W Max, Incandescent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
Mountings
WMA
Wall Mount Sconce
Dimming Types
D2*
LED Line voltage control dimming
*Consult factory for dimmer compatibility
*Consult factory for dimmer compatibility
D3
LED 0-10V wireless dimming
