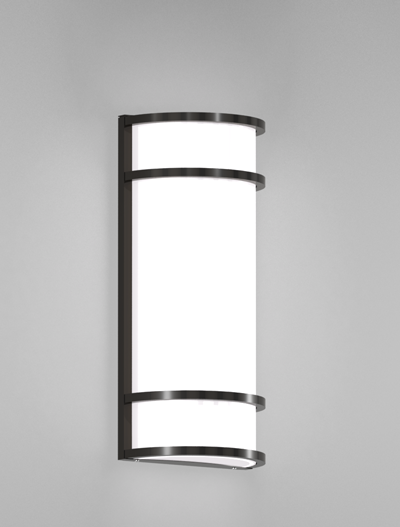

Los Angeles Series - Exterior Wall Sconce
| Model Number | Lamping Code | Body Lamping | Circuit | Finish | Diffuser | Louver | Options | IES | BIM | |
LA0920S-E Dimensions: • W 9" • HT 20" • EXT 4" | BGW | 2-60W A19 (120W) | 1 | PC | WA | BL |  |  |  | |
LA1124S-E Dimensions: • W 11" • HT 24" • EXT 6" | EBJ | 2-60W A19 (120W) | 1 | PC | WA | BL | | | | |
LA1136S-E Dimensions: • W 11" • HT 36" • EXT 5.5" | FYE | 3-100W A21 (300W) | 1 | PC | WA | BL | | | | |
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded Stainless Steel metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for single circuit operation (Body Lamping)
- High power factor electronic ballast or LED driver
- Standard LED color temperature is 3000K with 80 CRI. Contact us for other color temperature or CRI options.
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Mounts to standard electrical junction box (by others)
- LED Battery Back-Up Available
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
EXT
Extension
Lamps
60W A19
Medium Base, 60W Max, Incandesent or LED
100W A21
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
Mountings
WMA
Wall Mount Sconce
Louvers
BL
Bottom Lens
