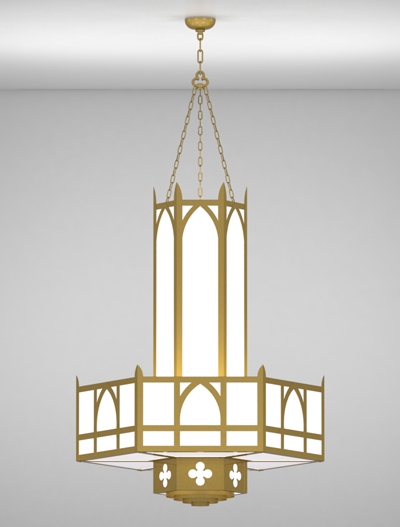

Ipswich Series - 3-Tier Large Pendant
| Model Number | Lamping Code | Body Lamping | Gallery Lamping | Down Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
IP3038H Dimensions: • W 30" • HT 40" • OAH 72" (OverAll Height) | GLG | 4-60W A19 (240W) | 6-60W A19 (360W) | 1-100W R40/Par38 (100W) | 2 | PC | WA AG | STA CHA CHC STC | SQ |  |  |  | |
IP3642H Dimensions: • W 36" • HT 43" • OAH 96" (OverAll Height) | DVO | 15,300lm LED (83W) | 32,600lm LED (219W) | 7,100lm LED (51W) | 2 | PC | WA AG | STA CHA CHC STC | SQ | D1 | | | |
| FWD | 6-100W A21 (600W) | 6-100W A21 (600W) | 1-100W R40/Par38 (100W) | 3 | PC | WA AG | STA CHA CHC STC | SQ | | | |||
IP4249H Dimensions: • W 42" • HT 51" • OAH 120" (OverAll Height) | EAU | 15,300lm LED (83W) | 32,600lm LED (219W) | 12,500lm LED (93W) | 2 | PC | WA AG | STA CHA CHC STC | SQ | D1 D3 | | | |
| FWC | 6-100W A21 (600W) | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 3 | PC | WA AG | STA CHA CHC STC | SQ | | | |||
IP4856H Dimensions: • W 48" • HT 60" • OAH 120" (OverAll Height) | ESP | 25,700lm LED (159W) | 32,600lm LED (219W) | 12,500lm LED (93W) | 2 | PC | WA AG | STA CHA CHC STC | SQ | D1 | | | |
| FWM | 6-100W A21 (600W) | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 3 | PC | WA AG | STA CHA CHC STC | SQ | | | |||
IP5460H Dimensions: • W 54" • HT 60" • OAH 120" (OverAll Height) | FZD | 27,800lm LED (133W) | 37,600lm LED (258W) | 12,500lm LED (93W) | 2 | PC | WA AG | STA CHA CHC STC | SQ | D1 D3 | | | |
| FWE | 6-100W A21 (600W) | 12-100W A21 (1200W) | 1-100W R40/Par38 (100W) | 3 | PC | WA AG | STA CHA CHC STC | SQ | | | |||
IP6072H Dimensions: • W 60" • HT 72" • OAH 120" (OverAll Height) | GLR | 27,800lm LED (145W) | 37,600lm LED (247W) | 12,500lm LED (90W) | 2 | PC | WA AG | STA CHA CHC STC | SQ | D1 | | | |
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED lamping
- High power factor electronic LED driver
- Wired for three circuit operation, Body Lamping, Gallery Lamping and Down Lamping
- Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
- Standard LED CRI is 80 - contact us for alternate CRI availability
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Standard LED dimming is 0-10v
- Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
- Fixture is Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
- Mounts to standard electrical junction box (by others), Box requires additional structural support (by others)
- For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Lamps
60W A19
Medium Base, 60W Max, Incandesent or LED
100W R40/Par38
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
STA
Single Stem
CHA
Single Heavy Chain
CHC
Triple Chain Spreader
STC
Steep Pitch Canopy for Stem
Louvers
SQ
Square Cell
Dimming Types
D1
LED 0-10V low voltage control dimming
D3
LED 0-10V wireless dimming
