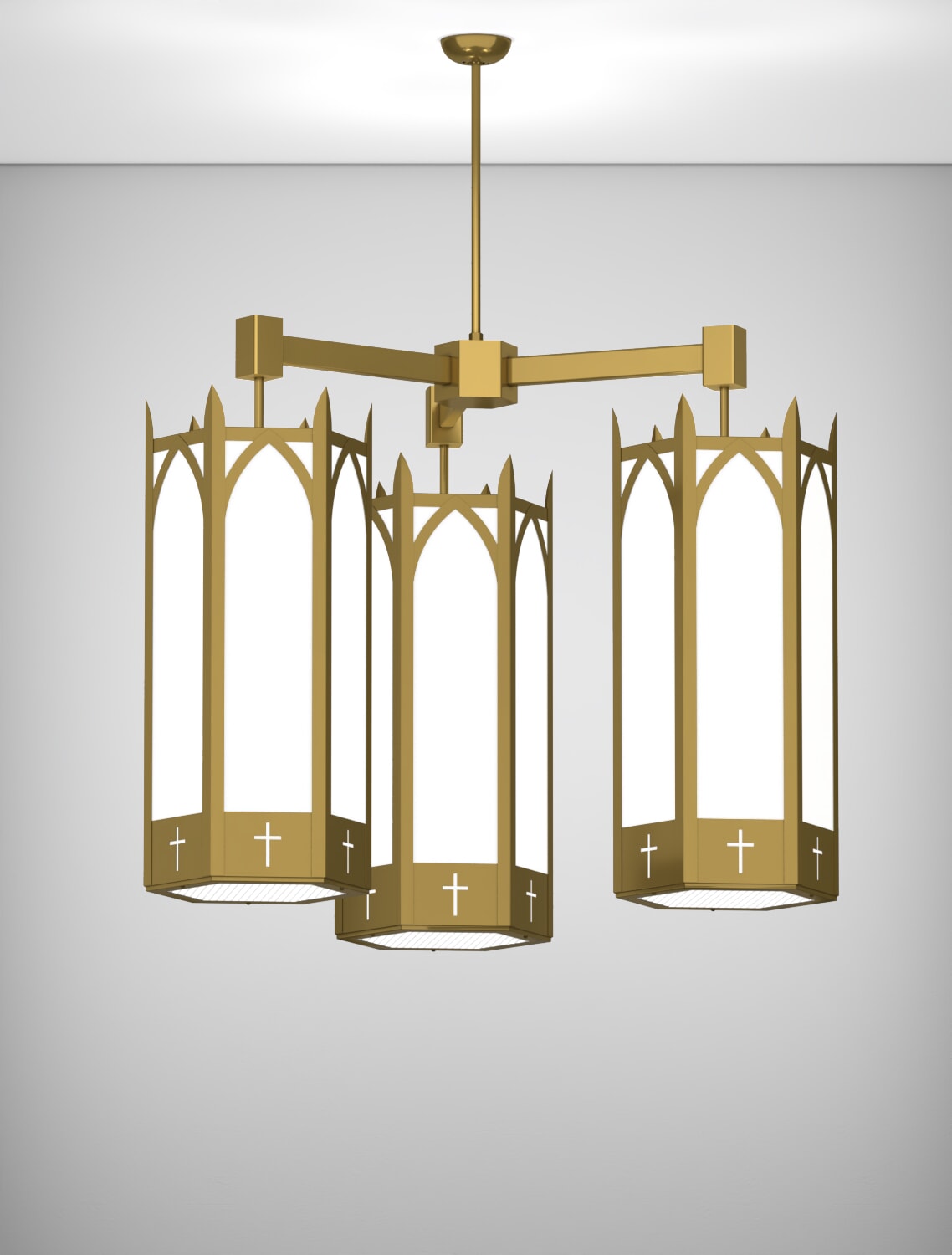

Hartford Series - 3-Arm Cluster Pendant
| Model Number | Lamping Code | Body Lamping | Down Lamping | Circuit | Finish | Diffuser | Mounting | Louver | Options | IES | BIM | |
HF2724U Dimensions: • W 37" • HT 32" • OAH 96" (OverAll Height) • Y 3 @ 12"x26" | GCB | 12-60W A19 (720W) | 3-100W A19 (300W) | 2 | PC | WA AG | STA STC | SQ | CUT LOGO |  |  |  |
HF3026U Dimensions: • W 42" • HT 34" • OAH 96" (OverAll Height) • Y 3 @ 14"x29" | DQK | 43,600lm LED (262W) | 21,400lm LED (151W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | |
| DQM | 69,300lm LED (437W) | 37,600lm LED (256W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | ||
| FKW | 18-60W A19 (1080W) | 3-100W A21 (300W) | 2 | PC | WA AG | STA STC | SQ | CUT LOGO | | | ||
HF3931U Dimensions: • W 53" • HT 39" • OAH 120" (OverAll Height) • Y 3 @ 16"x34" | DQN | 43,600lm LED (262W) | 37,600lm LED (279W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | |
| DQO | 69,300lm LED (437W) | 37,600lm LED (279W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | ||
| DQP | 88,700lm LED (579W) | 37,600lm LED (279W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | ||
| FKX | 18-60W A19 (1080W) | 3-100W A21 (300W) | 2 | PC | WA AG | STA STC | SQ | CUT LOGO | | | ||
HF4836U Dimensions: • W 63" • HT 44" • OAH 120" (OverAll Height) • Y 3 @ 18"x40" | GAB | 53,600lm LED (299W) | 15,500lm LED (99W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | |
| GAC | 53,600lm LED (299W) | 37,600lm LED (279W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | ||
| FYV | 74,800lm LED (433W) | 37,600lm LED (279W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | ||
| FYW | 105,900lm LED (708W) | 37,600lm LED (279W) | 2 | PC | WA AG | STA STC | SQ | CUT D1 D2* D3 LOGO | | | ||
| FKY | 27-60W A19 (1620W) | 3-100W A21 (300W) | 3 | PC | WA AG | STA STC | SQ | CUT LOGO | | | ||
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Mounting - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED lamping
- High power factor electronic LED driver
- Wired for dual circuit operation, Body Lamping and Down Lamping
- Standard LED CCT is 3000 Kelvin - contact us for alternate color temperature availability
- Standard LED CRI is 80 - contact us for alternate CRI availability
- Incandescent lamping is Triac or ELV dimmable - consult lamp and dimmer manufacturer for compatibility.
- Standard LED dimming is 0-10v
- Optional line voltage (Triac or ELV) LED dimming is available - consult for compatibility
- Fixture is Chain or Stem hung (extra length may be added, specify OAH) (OAH - Over All Height - is the length from the ceiling to the bottom of the fixture.)
- Mounts to standard electrical junction box (by others), Box requires additional structural support (by others)
- For slopes greater than 35 degrees (from horizontal) order steep pitch adapter (Stem only)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Y
Y-Dimension
Lamps
60W A19
Medium Base, 60W Max, Incandesent or LED
100W A19
Medium Base, 100W Max, Incandesent or LED
Finish Types
PC
Powder Coat
Diffuser Types
WA
Standard Acrylic Diffuser
AG
Premium Glass Diffuser
Mountings
STA
Single Stem
STC
Steep Pitch Canopy for Stem
Louvers
SQ
Square Cell
Dimming Types
D1
LED 0-10V low voltage control dimming
D2*
LED Line voltage control dimming
*Consult factory for dimmer compatibility
*Consult factory for dimmer compatibility
D3
LED 0-10V wireless dimming
Options
