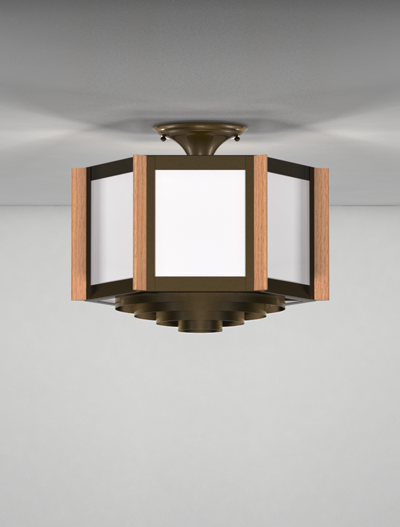

Hampton Series - Ceiling Mount
| Model Number | Lamping Code | Body Lamping | Voltage | Circuit | Finish | Louver | Hanging | Diffuser | Options |
|
HA1207C
Dimensions:
• W 14"
• HT 10"
• OAH N/A
(OverAll Height)
|
ABU | 2-F32TBX (77W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
| ABT | 2-100W-A21 (200W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
|
|
HA1408C
Dimensions:
• W 16"
• HT 11"
• OAH N/A
(OverAll Height)
|
DTR | 2,600lm LED (24W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DIM-010 |
| ABW | 2-F42TBX (99W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
|
| ABV | 3-100W-A21 (300W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
|
|
HA1609C
Dimensions:
• W 18"
• HT 12"
• OAH N/A
(OverAll Height)
|
DTS | 3,800lm LED (34W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DIM-010 |
| ABY | 3-F42TBX (148W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
|
| ABX | 3-100W-A21 (300W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
|
|
HA1811C
Dimensions:
• W 20"
• HT 14"
• OAH N/A
(OverAll Height)
|
DOQ | 3,800lm LED (34W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DIM-010 |
| ACA | 4-F42TBX (197W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
|
| ABZ | 3-100W-A21 (300W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
|
|
HA2206C
Dimensions:
• W 22"
• HT 7"
• OAH N/A
(OverAll Height)
|
BPF | 4-F42TBX (197W) | 120/277 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
| DUL | 6-60W-A19 (360W) | 120 | 1 | PC | CR/SQ | CC | AD/AG | MC/TC/CC DM |
|
| SAMPLE CATALOG NUMBER |
| Model Number - Lamping Code - Finish - Hanging - Diffuser - Options |
Scale
PRODUCT FEATURES
- Fabricated and welded metal housing
- Powder coated metallic finish
- UV stable, white acrylic diffuser (Standard)
- Optional specialty diffuser materials available
- Energy efficient LED or fluorescent lamping
- Wired for single circuit operation (Body Lamping)
- High power factor electronic ballast or LED driver
- Optional dimming ballast 120V or 277V (LED or fluorescent lamping)
- Mounts to standard 4" octagonal electrical junction box (by others)
- UL / cUL or ETL / cETL listed
- Contact Us for more lamping options.
Abbreviation Key
Dimensions
W
Width
HT
Height
OAH
OverAll Height
Lamp Descriptions
60W-A19
Medium Base, 60W Max, Incandesent or LED
100W-A21
Medium Base, 100W Max, Incandesent or LED
F32TBX
32W triple biax, 4-PIN GX24q-3 base
F42TBX
42W triple biax, 4-PIN GX24q-4 base
LED
3000 Kelvin Warm White LED
Finishes
PC
Powder Coat
Hanging Style
CC
Ceiling Canopy
Diffusers
AD
Acrylic (White Acrylic Standard)
AG
Art Glass
Options
DM
Dimming
MC
Modern Cross
TC
Triple Cross
CC
Celtic Cross
Louver
CR
CONCENTRIC RING (Not available on LED lamping)
SQ
SQUARE CELL (Must be used on all LED lamping)
